3D Printing Fume Extractor System

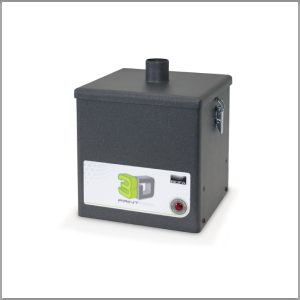

3D PrintPRO 2
The 3D PrintPRO 2 is a low cost unit which extracts fumes generated by the printer without causing the filament deposition area to be cooled. It has the benefits of low noise level and minimal power consumption. Each unit is supplied with a connection hose, ‘stay put’ arm, conical shaped nozzle and ‘print your own’ plenum instructions.
3D PrintPRO 3
The 3D PrintPRO 3 incorporates an externally mounted plenum system which effectively captures fumes generated during the printing process and returns ultra clean, filtered air to the
operator’s breathing zone.

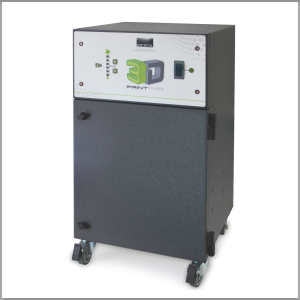

3D PrintPRO 4
The 3D PrintPRO 4 provides a high fume extraction and filtration rate when connected to a large enclosed 3D printer via its extraction take off point. It combines high flow rate with speed control within a compact free standing unit.

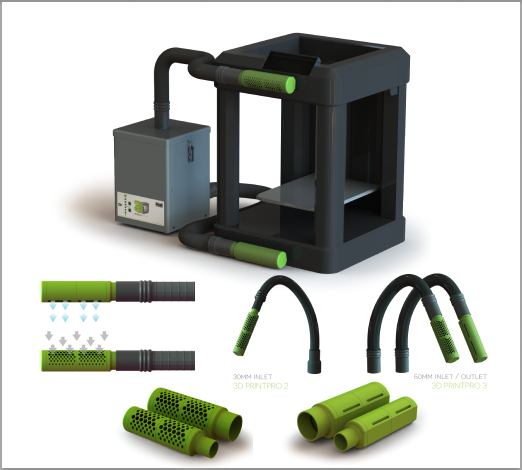

'PRINT YOUR OWN' 3D MANIFOLDS
The BOFA 3D manifolds for 3D printing are provided free of charge for you to print your own.
The two manifolds are designed to work with the 3D PrintPRO 2 and 3 extraction systems, to provide an air delivery system on one side of the 3D printer, and an air extraction system on the other. There are four parts to each of the manifolds: a connection spigot; the first end piece; a middle piece (which can be repeated to extend the manifold); and an end piece. The air outlet has slots along the top of the manifold, allowing a clean band of ultra clean air to flood the open face of the printer.
The air inlet manifold has a open grill of hexagons sucking in the contaminated air, which will pull all the fumes and printing vapours away from the 3D printing area, allowing for a clean working environment and precise final print. The end plug and connection spigots can be put on either end of the manifold and there is a choice of a straight or 90 degree bend spigot, to allow for correct positioning on the 3D printer.
